5G, the fifth generation of cellular network technology, promises a transformative shift in network capabilities, offering significantly higher bandwidth, lower latency, and enhanced network capacity compared to its predecessors. These advancements open up a plethora of new applications and services, ranging from ultra-high-definition video streaming to real-time industrial automation and autonomous vehicles.Network simulation plays a crucial role in evaluating and optimizing 5G technologies before deployment. NS3, a popular network simulation framework, provides a comprehensive set of tools and libraries for modeling and simulating 5G networks. Researchers and network engineers can utilize NS3 to assess the performance of 5G protocols, analyze network behavior under various traffic conditions, and optimize network configurations..

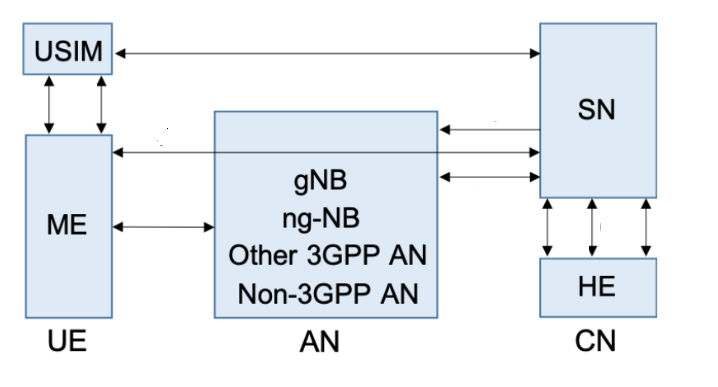

5G Architecture - 5G Implementation in Ns3 Projects

5G architecture introduces several key features that enable its enhanced capabilities:

1. New Radio Interface (NR): The NR is the physical layer of 5G, operating in the frequency range from 3 GHz to 100 GHz. It supports a wider range of frequencies and bandwidths compared to previous generations, enabling higher data rates.
2. Network Slicing: 5G allows for network slicing, which divides the network into virtual slices, each tailored to specific requirements of different applications or services. This enables flexible resource allocation and prioritization.
3. Edge Computing: Edge computing brings computation closer to the end-users, reducing latency and enabling real-time applications. 5G integrates edge computing capabilities, supporting low-latency and high-bandwidth applications.
4. Massive MIMO (Multiple-Input Multiple-Output): Massive MIMO utilizes a large number of antennas at both the base station and user equipment, significantly improving spectral efficiency and coverage.

5G Implementation in Ns3 Projects

5G Implementation in Ns-3 Projects

Ns-3 provides several modules and libraries for simulating 5G networks, including:

1. NR PHY and MAC Models: NS3 offers models for NR physical and MAC layers, enabling the simulation of 5G signal propagation, channel modeling, and medium access control protocols.
2. 5G Core Network Models: NS3 provides models for 5G core network components, such as the gNodeB (base station) and the EPC (Evolved Packet Core), allowing for simulation of end-to-end 5G networks.
3. Traffic Generation Models: NS3 includes traffic generation models for various 5G applications, such as video streaming, mobile gaming, and IoT traffic patterns.
4. Mobility Models: NS3 provides mobility models for simulating the movement of 5G users, including pedestrian, vehicular, and drone-based mobility models.

Protocols Used for 5G Implementation in Ns3 Projects

Several protocols are crucial for 5G Implementation in Ns3 Projects:

1. NR PHY: Defines the physical layer specifications for 5G, including modulation schemes, channel coding techniques, and synchronization mechanisms.
2. NR MAC: Governs medium access control in 5G networks, ensuring efficient resource allocation and collision avoidance.

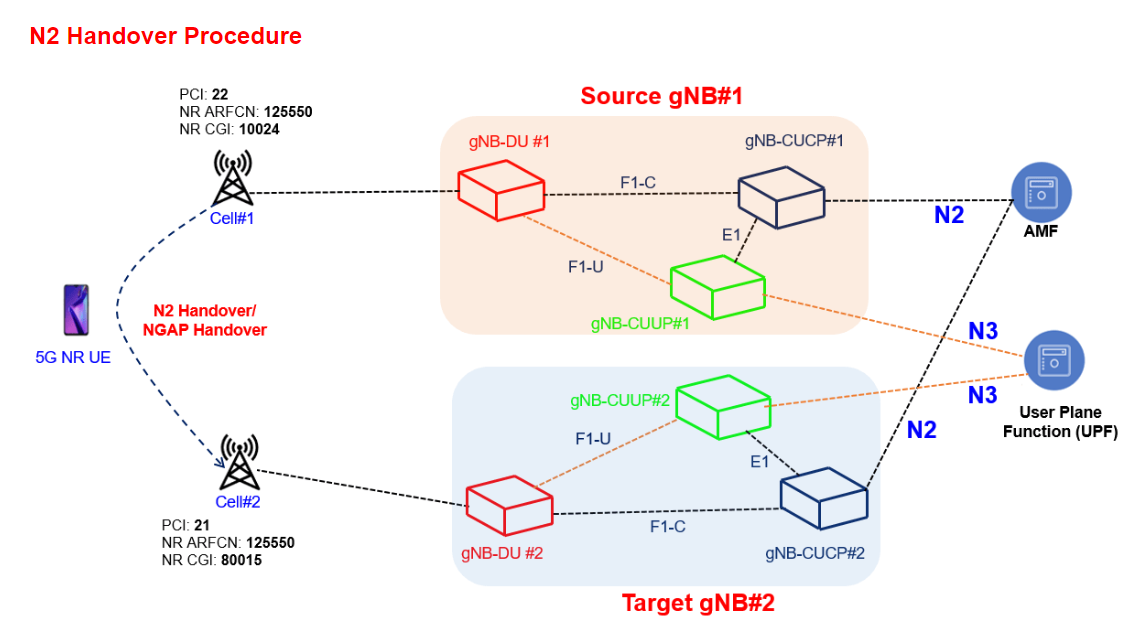

3. NGAP: The Next Generation Access Protocol (NGAP) is the interface between the gNodeB and the core network, responsible for user authentication, mobility management, and data transmission.
4. S1AP: The Stream Control Transmission Protocol (S1AP) is the interface between the eNodeB (4G base station) and the EPC in 5G non-standalone deployments, enabling interoperability with LTE networks.

Benefits of 5G Implementation in Ns3 Projects

5G Implementation in Ns3 Projects offers several advantages:

1. Performance Evaluation: NS3 simulations enable the evaluation of 5G network performance under various traffic conditions, network topologies, and deployment scenarios.
2. Protocol Testing: NS3 can be used to test the behavior and interoperability of 5G protocols, ensuring seamless communication and network functionality.
3. Network Optimization: NS3 simulations can aid in optimizing 5G network configurations, identifying potential bottlenecks, and improving resource utilization.
4. New Application Development: NS3 simulations can facilitate the development of new 5G applications by providing a testing environment for their interaction with the 5G network and protocols.

Conclusion

5G Implementation in Ns3 Projects plays a critical role in the development, evaluation, and optimization of 5G networks. By leveraging NS3's comprehensive capabilities, researchers and network engineers can gain valuable insights into the performance, behavior, and potential of 5G technologies, paving the way for the successful deployment and utilization of next-generation cellular networks. As 5G technology continues to evolve, NS3 will remain a valuable tool for exploring and harnessing the transformative potential of 5G.
