The Cooja Simulator Mobility Plugin Steps enable you to simulate node mobility in Cooja simulations. This is essential for testing IoT, VANET, and WSN protocols in realistic environments.

Enabling the Mobility Plugin

1. Download the mobility plugin from the following URL: https://github.com/contiki-os/contiki/issues/2341
2. Extract the downloaded ZIP file to the following directory: <cooja_home>/plugins
   (<cooja_home> is the directory where Cooja is installed)
3. Restart the Cooja simulator.

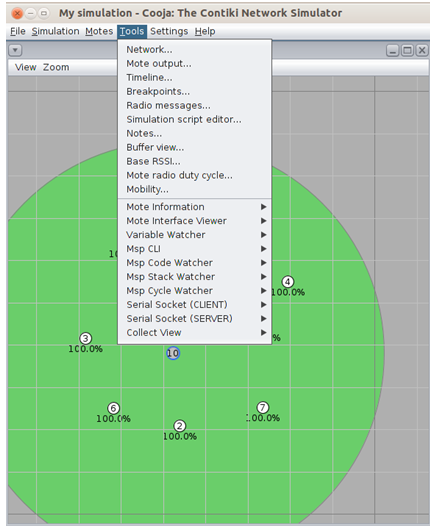

Cooja Simulator Mobility Plugin Steps

Creating a Mobility File

1. Open a text editor and create a new file.
2. Specify the following information for each node:
   • Node ID
   • Starting coordinates (x, y)
   • List of movement points (x, y)
3. Save the file with a .dat extension.

Example of a mobility file:

1 10 10
1 20 20
2 30 30


This file specifies that node 1 starts at (10,10) and moves to (20,20) and (30,30).

Adding the Mobility File to Your Simulation

1. Open your Cooja simulation.
2. Go to the "Simulation" menu and select "Add mote type".
3. Select "MobilityPluginMote" and click "Add".

Cooja Simulator Mobility Plugin Steps

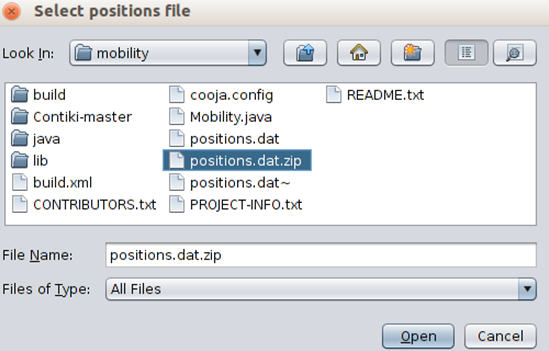

4. In the "MobilityPluginMote" configuration dialog box, select the mobility file you created and click "OK".
5. The node will now be added to your simulation with the specified mobility pattern.

Simulating Node Mobility

1. Start the simulation.
2. Observe nodes moving according to the mobility file.

Using with Other Protocols

The Cooja Simulator Mobility Plugin Steps can be applied with other protocols in your simulations. For example, test routing protocol performance under dynamic node movement.

Testing Your Protocols and Applications

By simulating node mobility, you can evaluate how your protocols handle network changes, packet loss, and dynamic environments.

Conclusion

The Cooja Simulator Mobility Plugin Steps provide a practical and effective approach to simulate node mobility in Cooja. Following these steps ensures accurate testing of IoT and WSN protocols under realistic network conditions.
